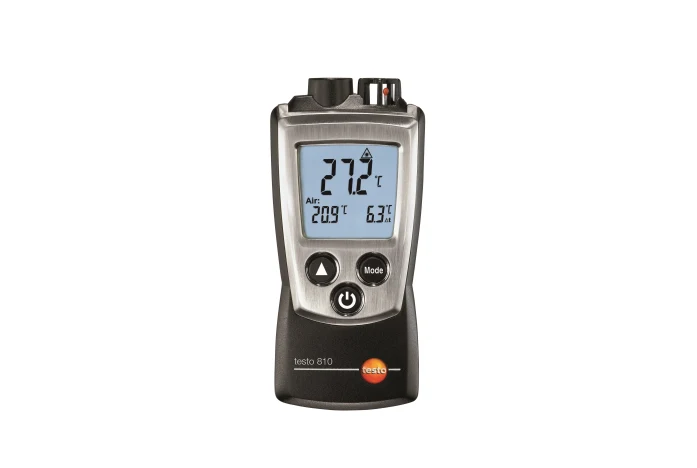

Infrared Thermometer Testo 810
The Testo 810 is a compact infrared thermometer that allows non-contact surface temperature measurement while also measuring air temperature, making it ideal for HVAC applications.
| Brand | Testo |
|---|---|
| Model | Testo 810 |
| Measuring range | -10 to +50 °C/-30 to +300 °C |
| Accuracy | ±0.5 °C/±2.0 °C (-30 to +100 °C) ±2 % of mv Remaining Range |
The Testo 810 Infrared Thermometer is a dual-channel temperature measuring device designed for accurate and convenient readings in HVAC applications. It measures surface temperature using infrared technology and simultaneously records air temperature via an integrated NTC sensor. The device directly displays the temperature difference between the two measurements on its illuminated screen, making it useful for evaluating heating, ventilation, and cooling systems.
With a surface temperature range of -30 to +300°C and an air temperature range of -10 to +50°C, the Testo 810 ensures precise readings with an accuracy of ±2.0°C (-30 to +100°C) and ±0.5°C (air temperature). The 6:1 optical ratio makes it suitable for close to medium-range measurements, and a 1-point laser helps accurately target the measurement area. The device also features an adjustable emissivity setting to accommodate different surface materials for improved accuracy.
Additional functionalities include a min/max value display, a hold function for freezing readings, and a fast measuring rate of 0.5 seconds. The device is compact, measuring 119 x 46 x 25 mm and weighing only 90 g (including batteries and protective cap). It operates with two AAA batteries, providing approximately 50 hours of battery life. With an IP40 protection rating, a protective cap, and a belt pouch for safe storage, the Testo 810 is a reliable and practical tool for professionals working with temperature-sensitive environments.
