Refrigerant Vacuum Pump V-I120SV – Value
Single-stage refrigerant vacuum pump designed for refrigeration and air conditioning applications. Suitable for handling multiple refrigerant types with reliable vacuum performance.
| Flow Rate | 1.8 CFM / 51 L/min (50Hz) |
|---|---|
| Ultimate Vacuum | 2 Pa / 150 micron |
| Motor Power | 1/4 HP |
| Inlet Port | 1/4" SAE |

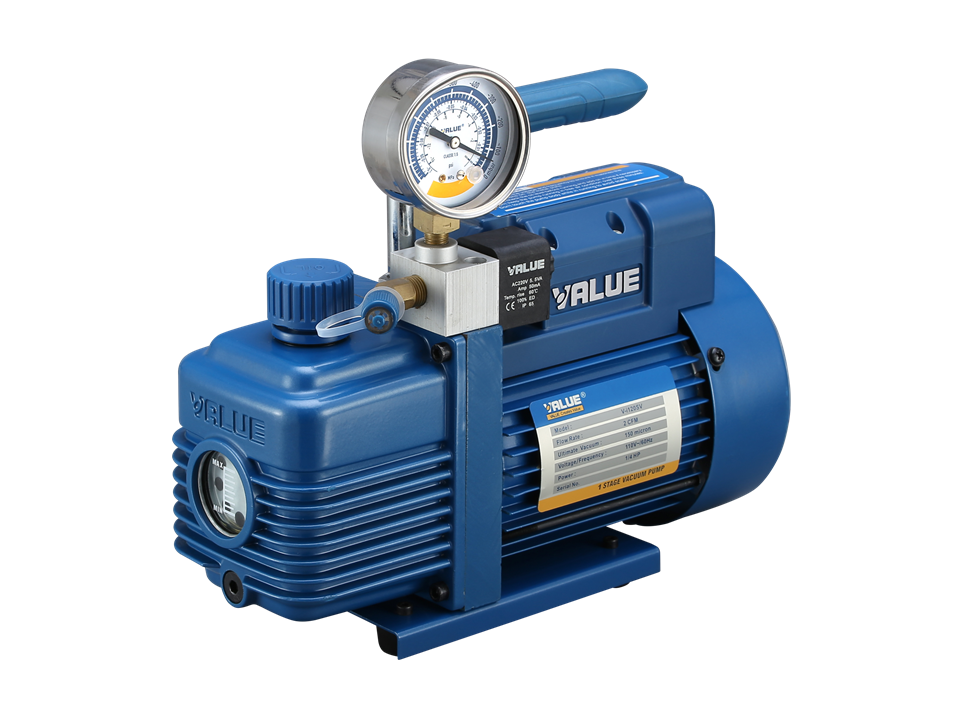

The V-I120SV refrigerant vacuum pump is a single-stage vacuum pump designed for refrigeration and air conditioning servicing applications. It is suitable for use with refrigerants including R410A, R407C, R134a, R12, and R22. The pump features an integrated body structure for improved precision and higher ultimate vacuum performance. It is equipped with a high-precision vacuum gauge, solenoid valve to help prevent backflow, and a large oil screen for better visibility during operation. Refer to the table below for model-wise specifications.
| Model | V-I120SV |
|---|---|
| Stage Type | Single Stage |
| Flow Rate (50Hz) | 1.8 CFM / 51 L/min |
| Flow Rate (60Hz) | 2.0 CFM / 57 L/min |
| Ultimate Vacuum | 2 Pa / 150 micron |
| Power | 1/4 HP |
| Inlet Port | 1/4″ SAE |
| Oil Capacity | 250 ml |
| Dimensions | 290 × 124 × 255 mm |
| Weight | 6.7 kg |
