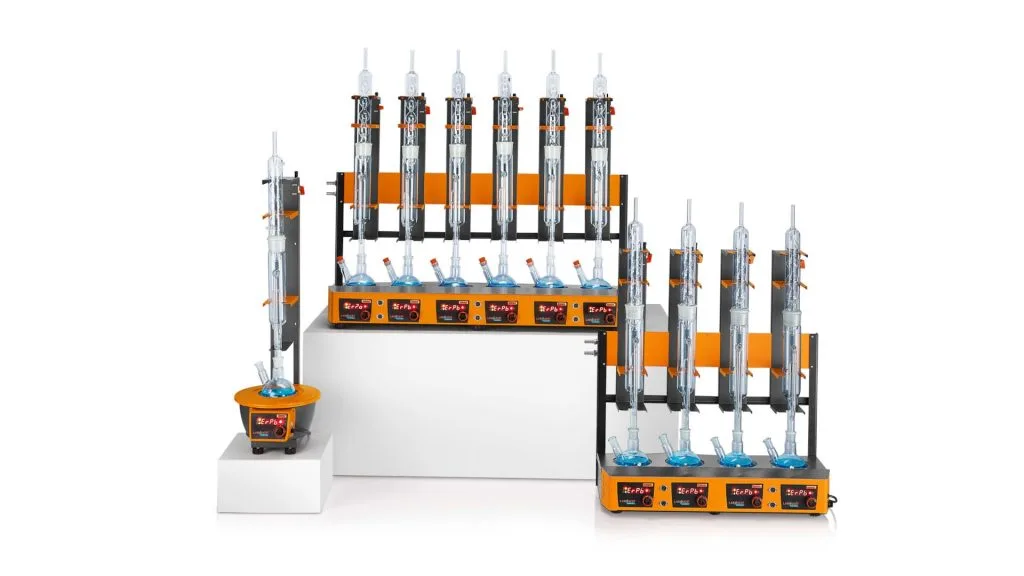

Soxhlet Extraction Apparatus – Borosil – SOX Series

Smart Soxhlet extraction system for parallel fat determination with digital temperature, energy, and time control.

Positions available	1, 4, 6
Extractor & flask capacity	100–200 ml (extractor), 250–500 ml (flask)
Temperature control accuracy	±1 °C
Digital timer range	1–999 minutes + continuous mode

The Borosil SOX Series Soxhlet apparatus is a smart and precise extraction system designed for accurate fat determination using the Soxhlet method. Engineered for laboratory efficiency, this apparatus supports extraction of up to six samples simultaneously, ensuring faster throughput with reduced effort.

With a compact and rugged design, the SOX units integrate advanced digital controls such as actual time setting (1–999 minutes), energy percentage display, and precise temperature regulation (±1 °C). The rotary knob allows for fine control over parameters like time, safe temperature, and power level. An auto heater cut-off function with both visual and audio alerts ensures operator safety, while the built-in calibration helps maintain accuracy over time.

The chemically and thermally resistant build enhances durability, and features like the smart stand for condenser placement and extractor knob for solvent recovery streamline handling and cleaning. Available in multiple configurations from 1 to 6 positions and extractor capacities of 100 ml or 200 ml, this series is ideal for food testing and analytical labs.

🔸 Available Variants

Model	Positions	Extractor Capacity (ml)	Flask Capacity (ml)	Dimensions (W × D × H, mm)	Power (W)	Product Code
SOX012	1	100	250	200 × 300 × 800	400	BLFRSOX01200000000
SOX015	1	200	500	200 × 300 × 800	400	BLFRSOX01500000000
SOX042	4	100	250	750 × 300 × 800	1600	BLFRSOX04200000000
SOX045	4	200	500	750 × 300 × 800	1600	BLFRSOX04500000000
SOX062	6	100	250	1050 × 300 × 800	2400	BLFRSOX06200000000
SOX065	6	200	500	1050 × 300 × 800	2400	BLFRSOX06500000000
