Vacuum Pump VE115N – Value
Single-stage vacuum pump designed for refrigeration servicing and vacuum applications. Suitable for use with multiple refrigerants and reliable vacuum performance.
| Flow Rate | 1.8 CFM / 51 L/min (50Hz) |
|---|---|
| Ultimate Vacuum | 2 Pa / 150 micron |
| Motor Power | 1/4 HP |
| Oil Capacity | 250 ml |

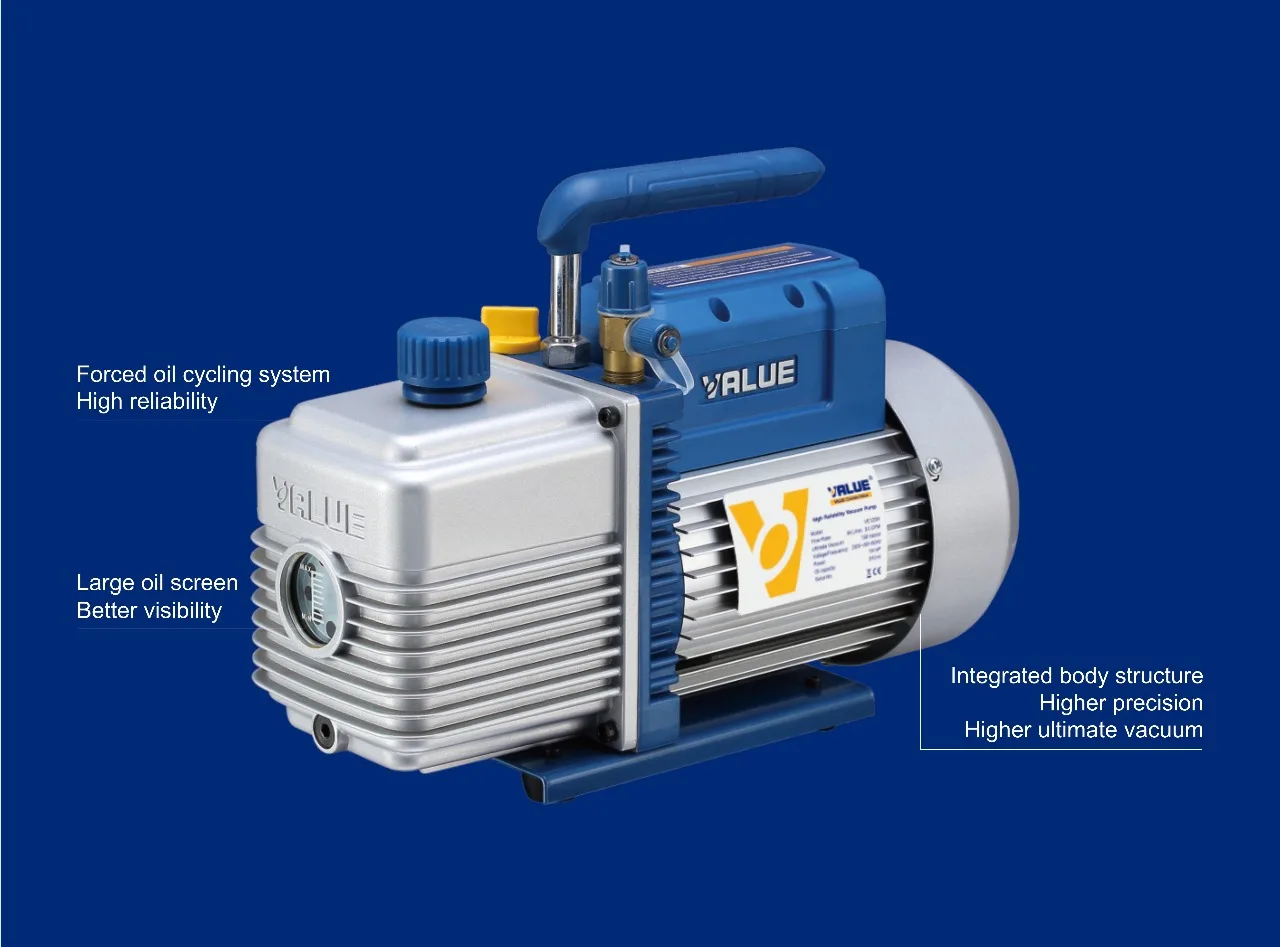

The VE115N vacuum pump is a single-stage refrigerant vacuum pump suitable for applications involving R407C, R404A, R507A, and R134a refrigerants. The pump features an integrated body structure designed for higher precision and improved ultimate vacuum performance. It is equipped with a forced oil cycling system for reliable operation and a large oil screen for better visibility during use. The compact construction and stable vacuum capability make it suitable for refrigeration and air conditioning service applications. Refer to the table below for model-wise specifications.
| Model | VE115N |
|---|---|
| Stage Type | Single Stage |
| Flow Rate (50Hz) | 1.8 CFM / 51 L/min |
| Flow Rate (60Hz) | 2.0 CFM / 57 L/min |
| Ultimate Vacuum | 2 Pa / 150 micron |
| Power | 1/4 HP |
| Inlet Port | 1/4″ SAE |
| Oil Capacity | 250 ml |
| Dimensions | 290 × 124 × 224 mm |
| Weight | 6.6 kg |
