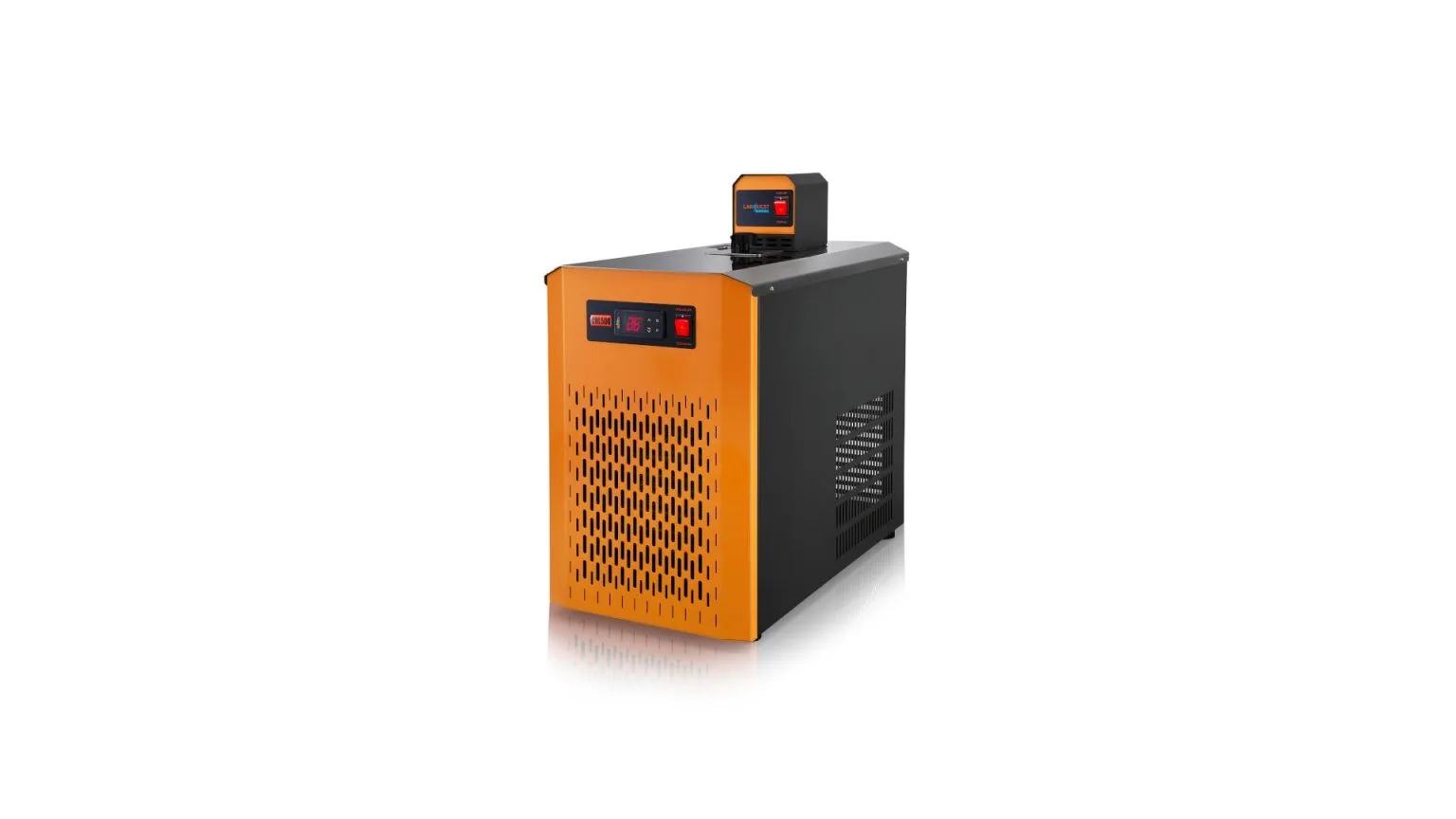

Recirculating Chiller – Borosil CHL Series
Recirculating chillers for precise temperature control in lab-scale thermal applications and solvent recovery systems.
| Temperature range | -20 °C to ambient -5 °C |
|---|---|
| Temperature stability | ±1.0 °C |
| Cooling capacity | 175 W to 2000 W (model dependent) |
| Pump flow rate | 12–15 LPM (model dependent) |
The Borosil CHL series recirculating chillers are designed to offer consistent temperature control for a wide range of laboratory applications such as rotary evaporation, jacketed reactors, soxhlet extraction, coliform testing, reagent warming, and microbiological assays. These chillers ensure operational stability and reproducibility, reduce solvent usage, and provide environmental and cost-saving benefits.
Built with a focus on laboratory reliability, the CHL series supports cooling capacities from 175 W to 2000 W, and delivers temperature control within ±1.0 °C, even under challenging lab conditions. Each model uses forced circulation with a pump flow rate of 12 to 15 LPM, enabling efficient temperature transfer to external systems.
A digital LED display allows users to monitor and set temperatures accurately, while the robust SS build and compact footprint ensure long-term durability and bench efficiency. Most models come equipped with castor wheels for easy mobility, making them flexible for various lab layouts.
Refer to the table below for model-wise specifications:
| Model | Tank Capacity | Cooling Capacity | Pump Flow Rate | Castor Wheels | Ordering Code |
|---|---|---|---|---|---|
| CHL175 | 5 L | 175 W | 12.5 LPM | No | BLFRCHL17500000000 |
| CHL250 | 5 L | 250 W | 12 LPM | No | BLFRCHL25000000000 |
| CHL500 | 5 L | 500 W | 15 LPM | Yes | BLFRCHL50000000000 |
| CHL010 | 8 L | 1000 W | 15 LPM | Yes | BLFRCHL01000000000 |
| CHL020 | 15 L | 2000 W | 15 LPM | Yes | BLFRCHL02000000000 |
